Advantech Outdoor Cat. NB1/Cat. M1 Wireless Sensor Module (WISE-4671-UA)
Deskripsi
| Category | Attribute | Value |
| General | Connectors | 1 x M12 4-pin code-A male, 2 x M12 8-pin code-A female |
| Hardware | Certification | CE, FCC Class A, PTCRB, AT&T, Verizon |
| Hardware | LED Indicators | Status, Error, Tx, Rx, Signal Level, Battery Level |
| Hardware | Power Consumption | 1.4 W @ 12 VDC |
| Hardware | Power Input | 10~50 VDC, 17~21 VDC Solar Panel |
| I/O Interface | USB Ports | 1 x Micro-B USB |
| Environment | Ingress Protection | IP65 |
| Environment | Operating Temperature | -25~70 °C (-13~158 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Humidity | 0~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Expansion Function | SIM card slot | Nano SIM card |
| Power Requirements | Input Voltage | 10~50 VDC, 17~21 VDC Solar Panel |
| Mechanical | Dimension (W x H x D) | 82 x 122 x 49 mm |
| Mechanical | Weight (Net) | 0.5 kg |
| Wireless Communication | Frequency Band | LTE Band 2, 3, 4, 5, 8, 12, 13, 20, 28 |
| Wireless Communication | Standard(Technology) | NBIoT, LTE-M |
Produk Terkait

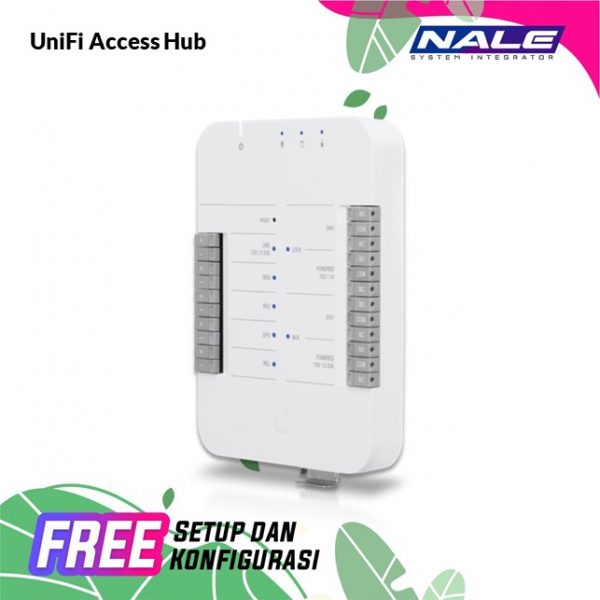

UniFi Access Hub
